MATRIX Sewage Treatment Plants are designed to optimise process efficiency, minimise running and maintenance costs and to be as simple and cost effective as possible to install.
MATRIX Sewage Treatment Plants are available as a standard single structure 'unitank' design up to residential population equivalents of 300 and thereafter larger systems become a modular design.
The MATRIX Sewage Treatment Plants are designed to achieve the minimum required effluent quality standard of 20mg/litre Biochemical Oxygen Demand (BOD) : 30mg/litre Suspended Solids (SS) : 20mg/litre Ammoniacal Nitrogen (NH4), which in European Standard performance testing relates to an efficiency of better than 94%. The certified performance of the MATRIX Sewage Treatment Plants is that it produces an average final effluent quality of 11mg/litre Biochemical Oxygen Demand (BOD) : 16mg/litre Suspended Solids (SS) and 7mg/litre Ammoniacal Nitrogen. This relates to an average efficiency ratio of 96.2%, better than most other manufacturers, with individual test efficiency results being as high as 98.8%. As part of the test procedure the MATRIX Sewage Treatment Plants were proven to have one of the lowest operating costs.
If a more stringent standard of final effluent quality is required by the Environment Agency, we can normally design to achieve this. For developments requiring low phosphate and ammoniacal nitrogen levels we have the MATRIX Topas Plus which achieves final effluent qualities of less than 1mg/litre of both Phosphates and Ammoniacal Nitrogen. CLICK HERE FOR INFO
All of our treatment plants have a standard inlet invert depth, but in keeping with our commitment to customer satisfaction and to keep installation simple, we can manufacture our units to specifically meet site requirements. Integral pumped discharges can also be provided with all units, eliminating the need for additional tankage and installation costs.
All MATRIX Sewage Treatment Plants are complete with failure alarms as standard (as required by BSEN12566-3) and are not, as with some other companies in this industry, an optional additional cost item.
“MATRIX Sewage Treatment Plants are available for all applications from a single house unit up to a 300 person system. Modular systems are manufactured for greater populations”
The MATRIX Sewage Treatment Plant has a three stage biological process contained within a single tank structure, based on the principles of a submerged bed reactor and designed in accordance with the requirements of BS6297.
Careful configuration of the internal flowpath and the inclusion of non-mechanical recirculation systems ensures optimal process performance as demonstrated by the exceptional results obtained from the independent testing, providing complete peace of mind for the end user. There are NO electrical or mechanical components within the treatment plant thereby eliminating the need for any specialist servicing arrangements ensuring that any maintenance requirements on the MATRIX Sewage Treatment Plant are kept to an absolute minimum.
See below details of our standard range of MATRIX Sewage Treatment Plants:

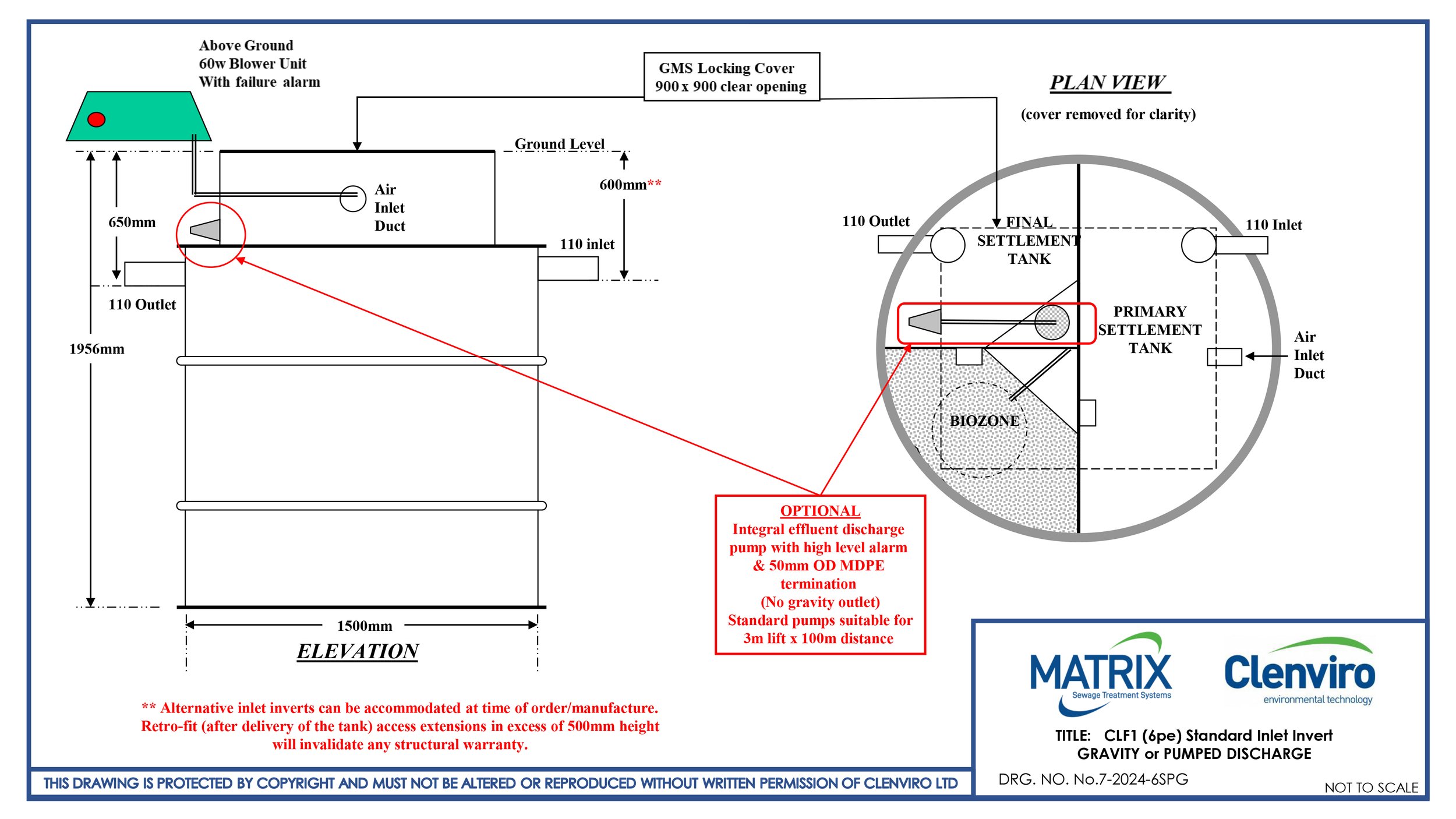

| Model Ref | PE | BOD/day Kg | Flow/Day M3 Kg | Length mm | Width mm | Depth mm | Inlet Size mm | Weight Kg | Blower Rating | Model Drawing | CLF 1 | 6 | 0.36 | 0.9 | 1500 | 1500 | 1956 | 110 | 200 | 55w/240v |

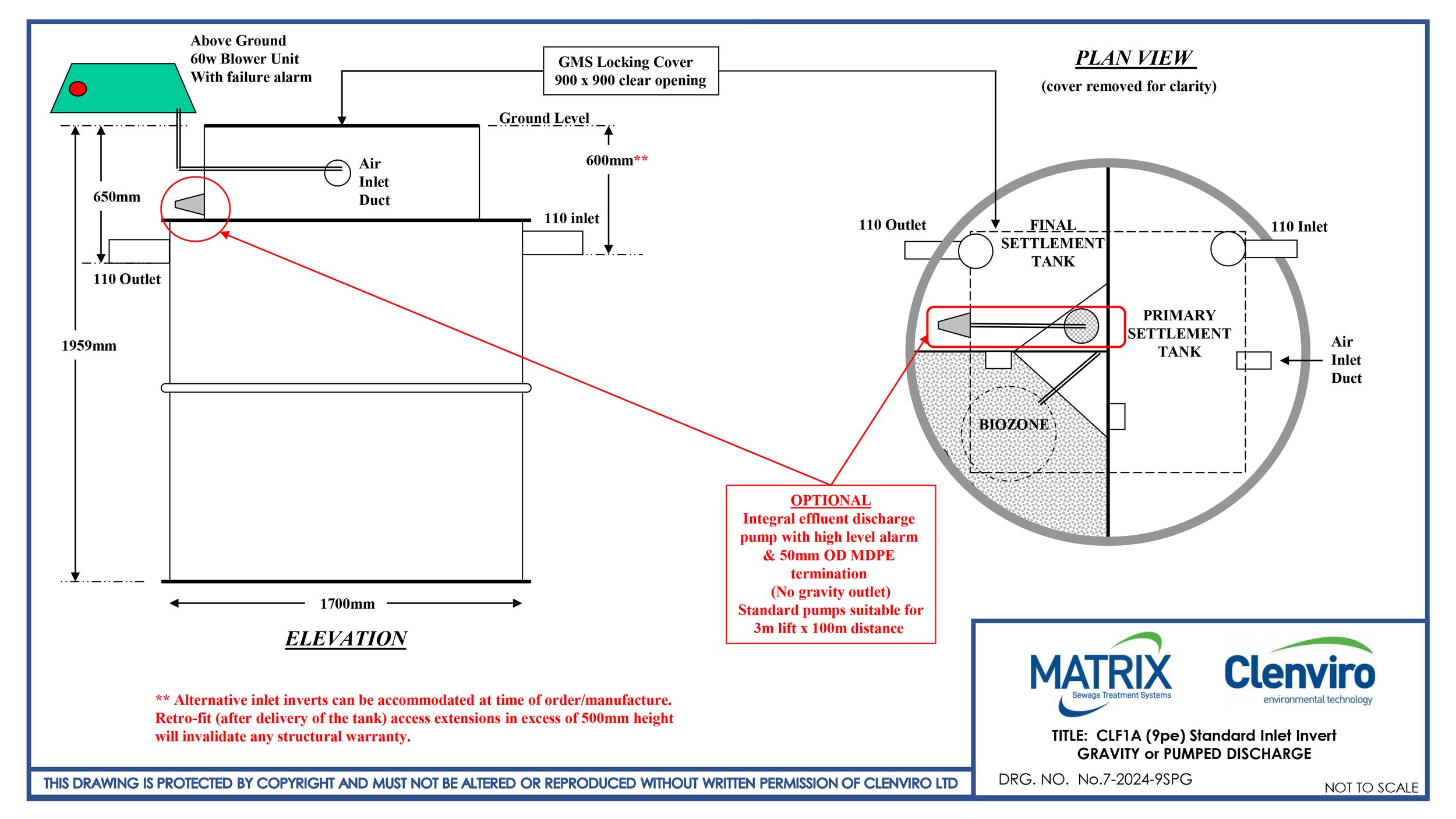

| CLF 1A | 9 | 0.54 | 1.35 | 1700 | 1700 | 1959 | 110 | 250 | 55w/240v | |
|
CLF 2 |
12 | 0.72 | 1.8 | 1900 | 1900 | 1959 | 110 | 300 | 85w/240v | |
|

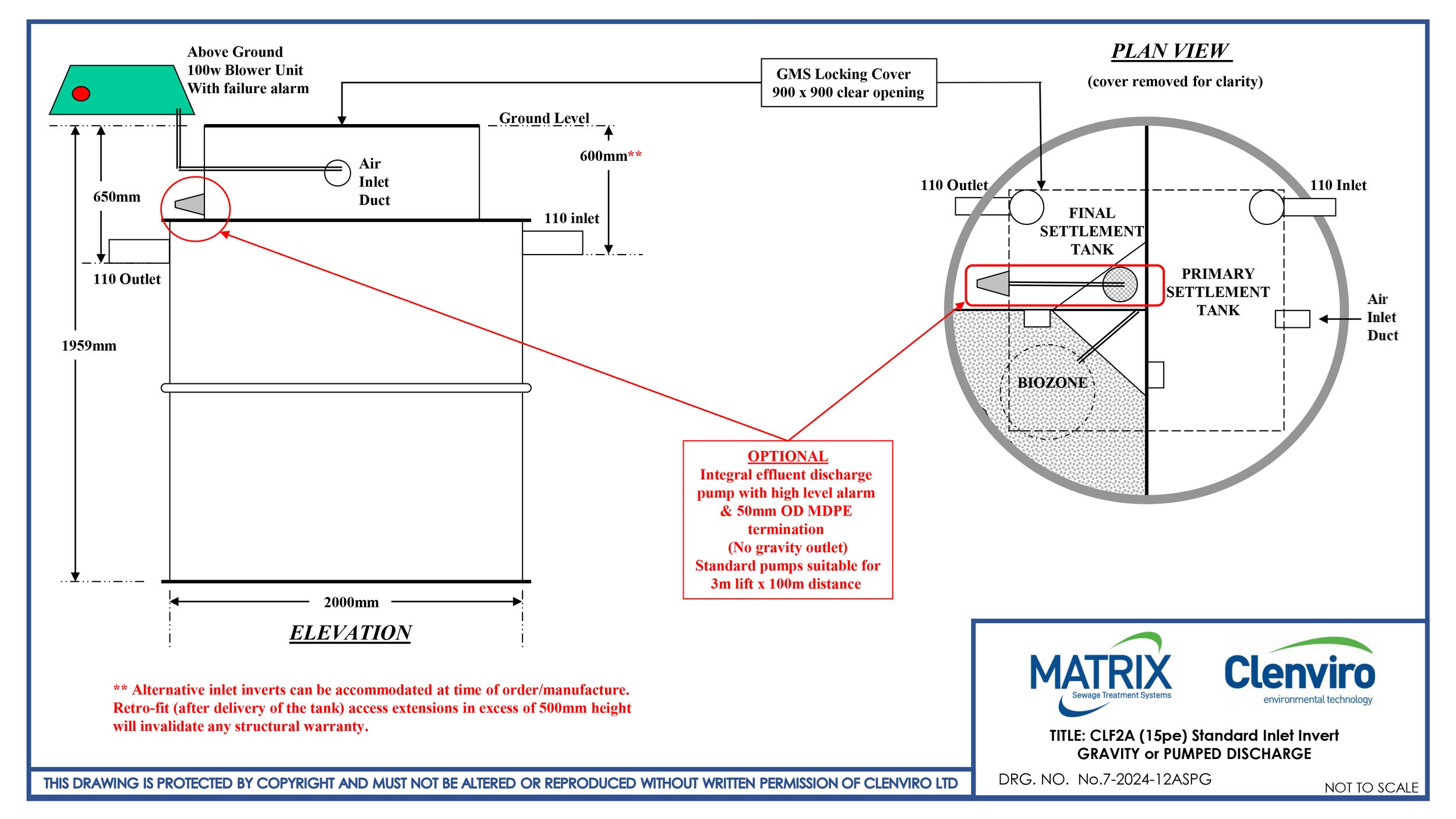

CLF 2A
|
15 | 0.90 | 2.25 | 2000 | 2000 | 1959 | 110 | 325 | 105w/240v | |

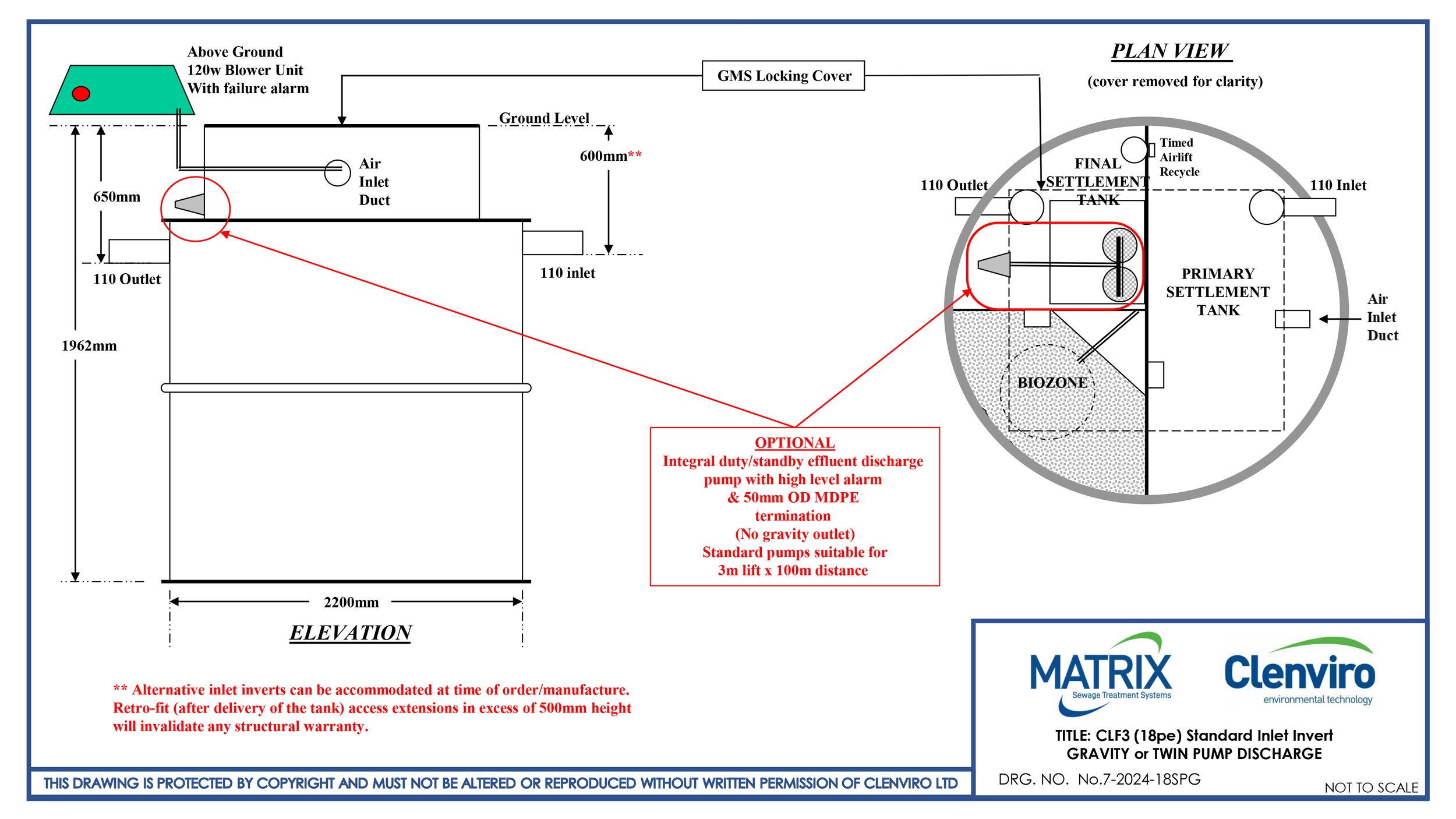

| CLF 3 | 18 | 1.08 | 2.7 | 2200 | 2200 | 1962 | 110 | 500 | 125w/240v | |
| CLF 4 | 25 | 1.5 | 3.75 | 2500 | 2500 | 1912 | 160 | 750 | 125w/240v | |
| CLF 5 | 30 | 1.8 | 4.5 | 4100 | 1624 | 1912 | 160 | 1200 | 210w/240v | |

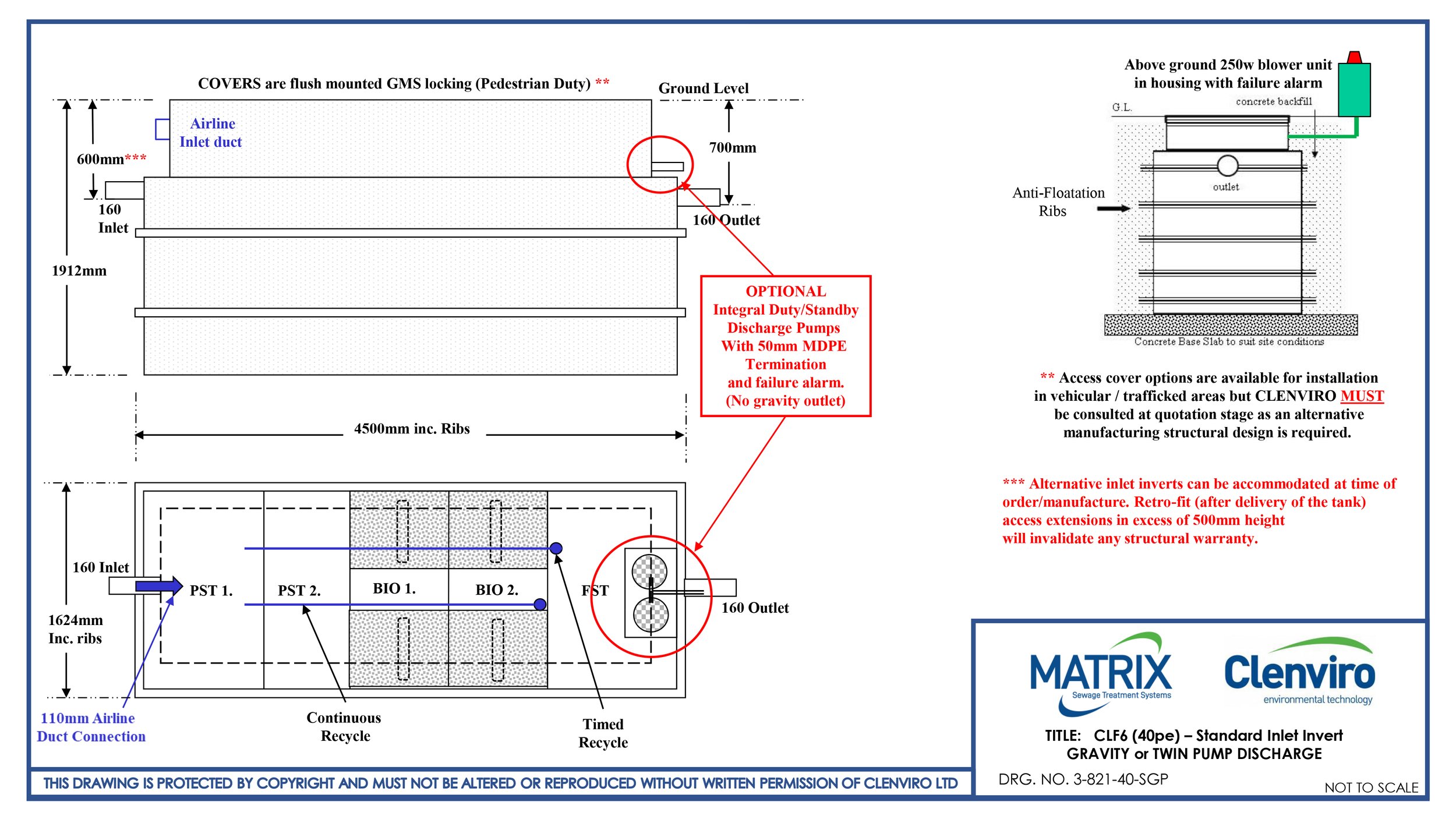

| CLF 6 | 40 | 2.4 | 6.0 | 4500 | 1624 | 1912 | 160 | 1400 | 220w/240v | |
| CLF 7 | 50 | 3.0 | 7.5 | 5100 | 2124 | 1912 | 160 | 1700 | 300w/240v | |
| CLF 8 | 60 | 3.6 | 9.0 | 5600 | 2124 | 1912 | 160 | 2000 | 380w/240v | |
| CLF 9 | 70 | 4.2 | 10.5 | 6000 | 2124 | 1912 | 160 | 2200 | 380w/240v | |
| CLF 10 | 80 | 4.8 | 12.0 | 6600 | 2124 | 1912 | 160 | 2400 | 380w/240v | |
| CLF 11 | 90 | 5.4 | 13.5 | 7500 | 2124 | 1912 | 160 | 2600 | 720w/240v | |
| CLF 12 | 100 | 6.0 | 15.0 | 7500 | 2524 | 1912 | 160 | 2900 | 750w/240v | |
| CLF 13 | 125 | 7.5 | 18.75 | 9000 | 2524 | 1912 | 160 | 3100 | 800w/240v | |
| CLF 14 | 150 | 9.0 | 22.5 | 10500 | 2524 | 1912 | 160 | 3300 | 910w/240v | |
| CLF 15 | 200 | 12.0 | 30.0 | 12000 | 2524 | 1912 | 160 | 3500 | 1.2Kw/240v | |
| CLF 16 | 250 | 15.0 | 37.5 | 12000 | 2524 | 2412 | 160 | 3700 | 1.4Kw/415v | |

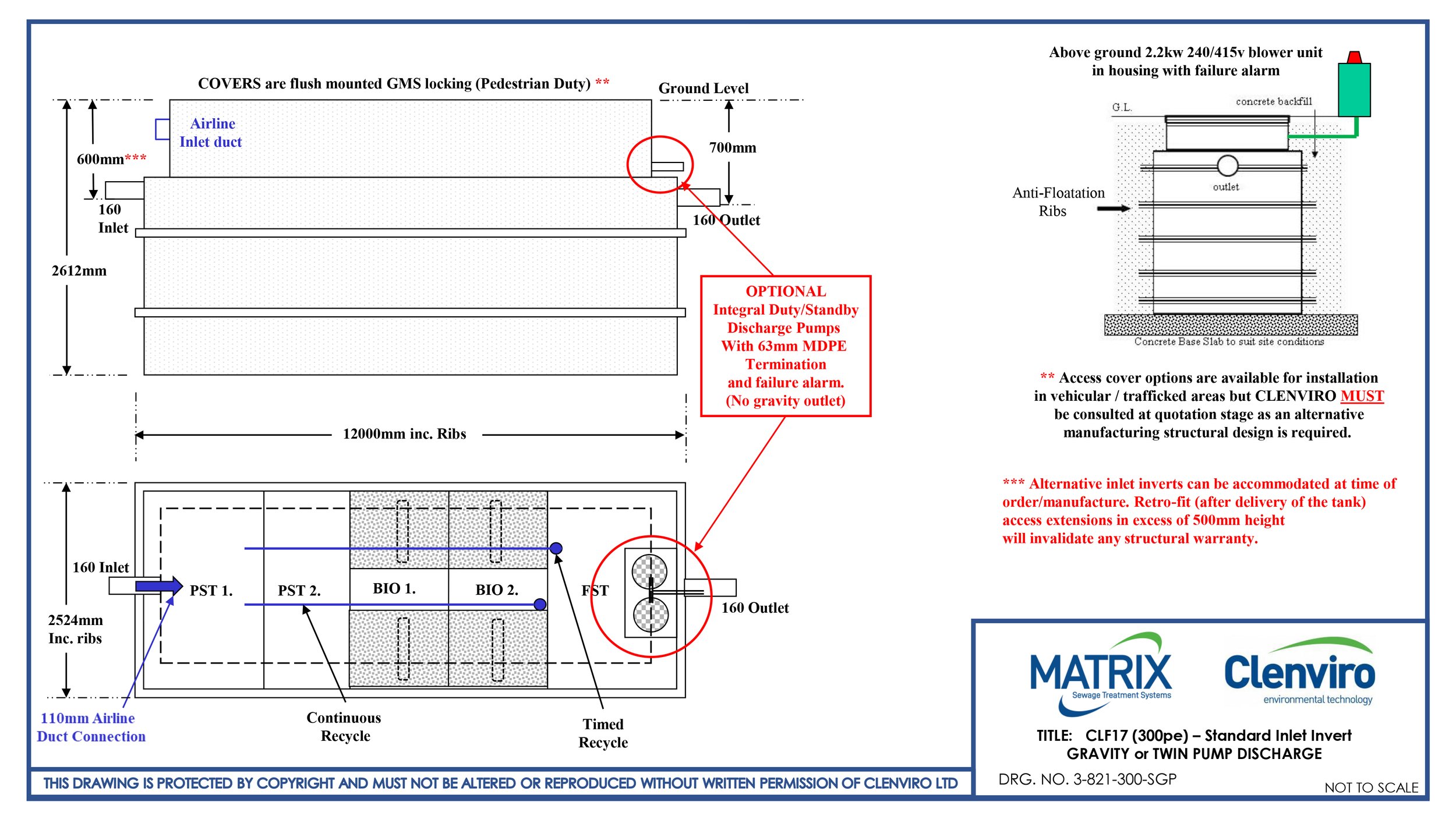

| CLF 17 | 300 | 18.0 | 45.0 | 12000 | 2524 | 2612 | 160 | 3900 | 1.4Kw/415v |
BESPOKE
·
MADE TO ORDER
·
ANY INVERT LEVEL
·
EASY INSTALLATION
·
ENERGY EFFICIENT
·
HEAVY DUTY DRIVEWAY APPLICATIONS
·
LOW MAINTENANCE
·
BESPOKE · MADE TO ORDER · ANY INVERT LEVEL · EASY INSTALLATION · ENERGY EFFICIENT · HEAVY DUTY DRIVEWAY APPLICATIONS · LOW MAINTENANCE ·
